If a Chainwheel is properly installed, maintained and inspected, it should never separate from the valve and fall to the ground. Although the likelihood of a Chainwheel falling is small, the result could be a serious injury or even a fatality.

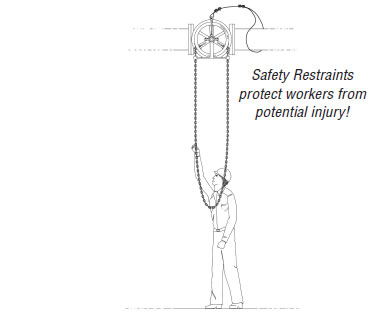

Safety Cable Kits can be economically added to the Chainwheel installation or retrofitted to an existing Chainwheel. One end is attached to the Chainwheel and the other to a permanent part of the valve or an adjacent pipe.

Cable, clips and eyebolts are made from Type 316 stainless steel for long life in even the most corrosive environments.

Click to see our Stainless Steel Chainwheels.

Eyebolts for Stainless Steel Chainwheels... Stainless Steel Chainwheel Use Eyebolt Length... Item No. Weight (kgs) SS-4D 1" Eyebolt 1974 0.023 SS-6D 1" Eyebolt 1974 0.023 SS-8B 3" Eyebolt 1973 0.045 SS-12B 6" Eyebolt 1972 0.068 SS-15B 6" Eyebolt 1972 0.068 SS-22B 13" Eyebolt 1970 0.113 SS-29B 13" Eyebolt 1970 0.113

Eyebolts for Ductile Iron Chainwheels... Ductile Iron Chainwheel Use Eyebolt Length... Item No. Weight (kgs) TRD-0.0 3" Eyebolt 1973 0.045 TRD-1.0 3" Eyebolt 1973 0.045 TRD-1.5 3" Eyebolt 1973 0.045 TRD-2.0 3" Eyebolt 1973 0.045 TRD-2.5 6" Eyebolt 1972 0.068 TRD-3.0 9" Eyebolt 1971 0.091 TRD-3.5 9" Eyebolt 1971 0.091 TRD-4.0 9" Eyebolt 1971 0.091 TRD-4.5 13" Eyebolt 1970 0.113 TRD-5.0 13" Eyebolt 1970 0.113
